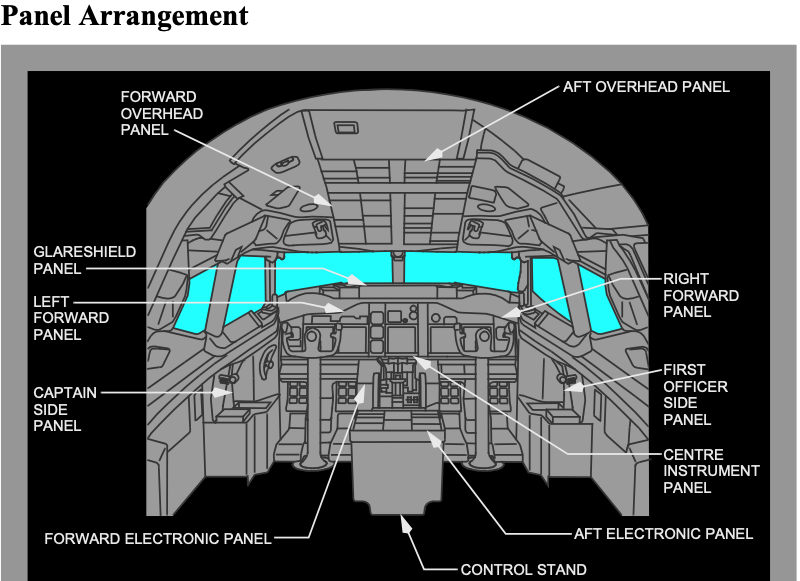

CAPTAINS INSTRUMENT PANEL

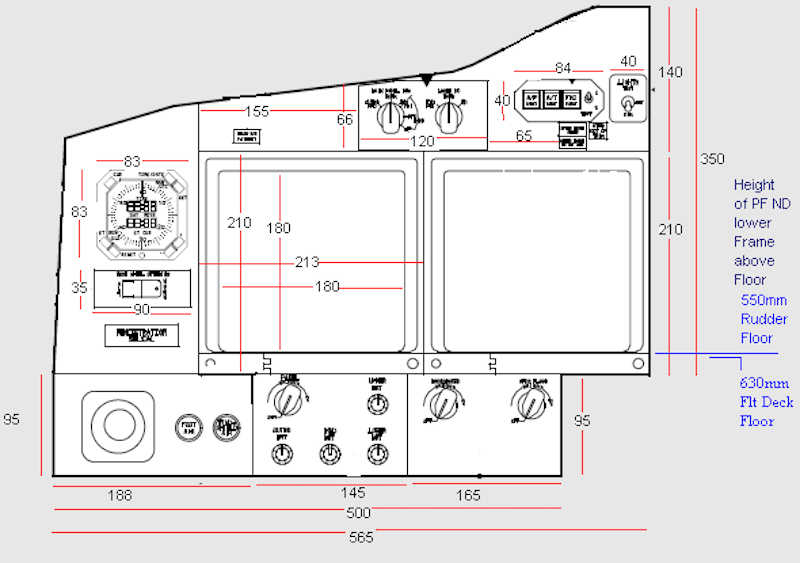

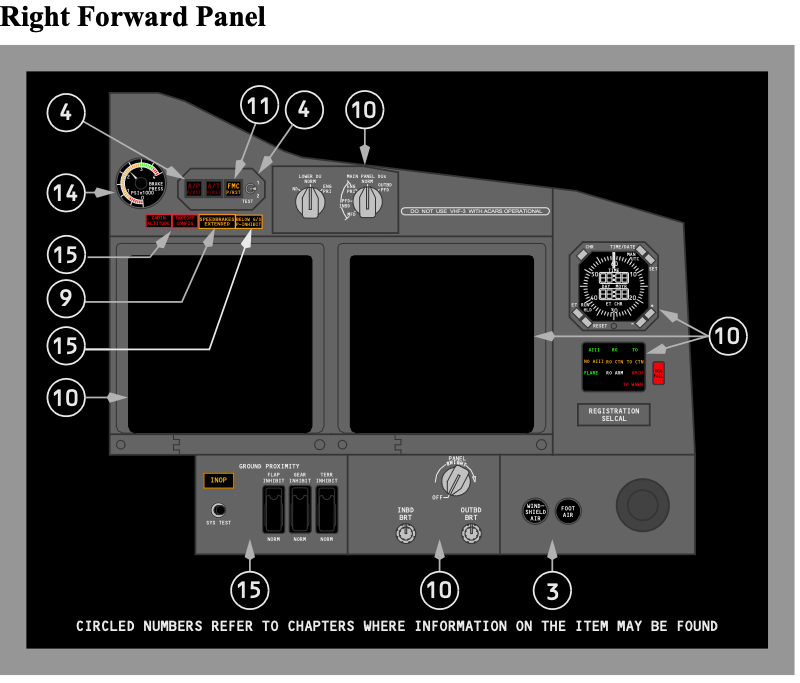

LEFT FORWARD PANEL
• Height of Panel. 350 mm

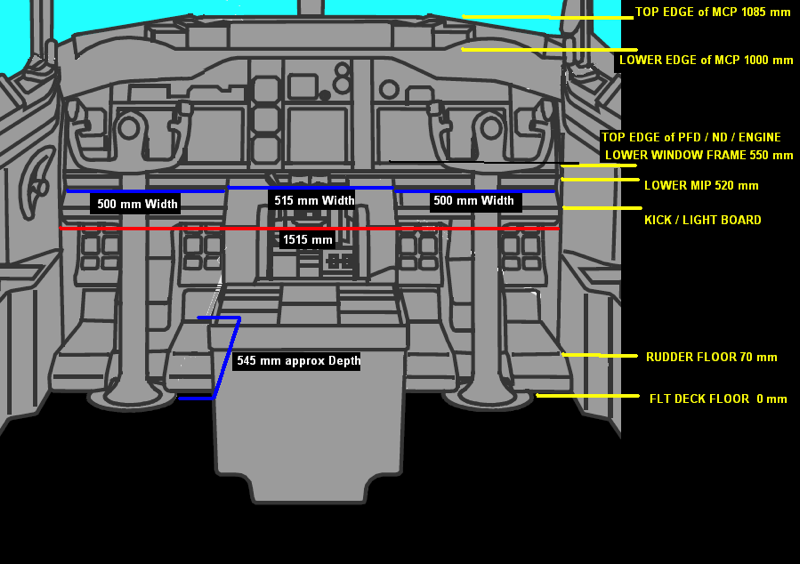

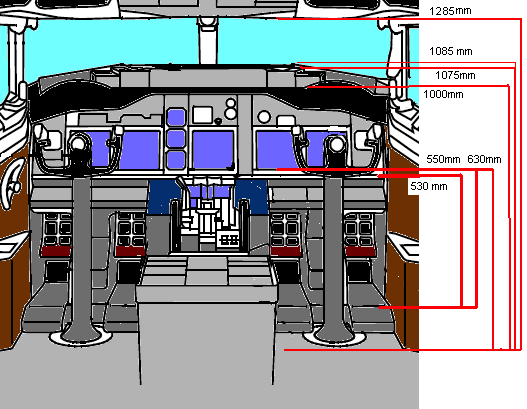

• Lower edge of the Primary Flight Display / Nav Display is
550mm above the Rudder Floor Level
630mm above the Flight Deck Floor Level
( Rudder Pedal floor is 80mm above Flight Deck Floor )
• approximate width mm • 565 mm measure at the lower edge of the PFD / ND
• approximate height mm • 350 mm from Top to lower edge of PFD / ND display
• approximate height mm • 445 mm from Top to lower edge of lightpanel / kickboard
• approximate slope • 15 - 20 ° from vertical. Top edge sloping towards the nose of aircraft
ENGINE INSTRUMENTS PANEL

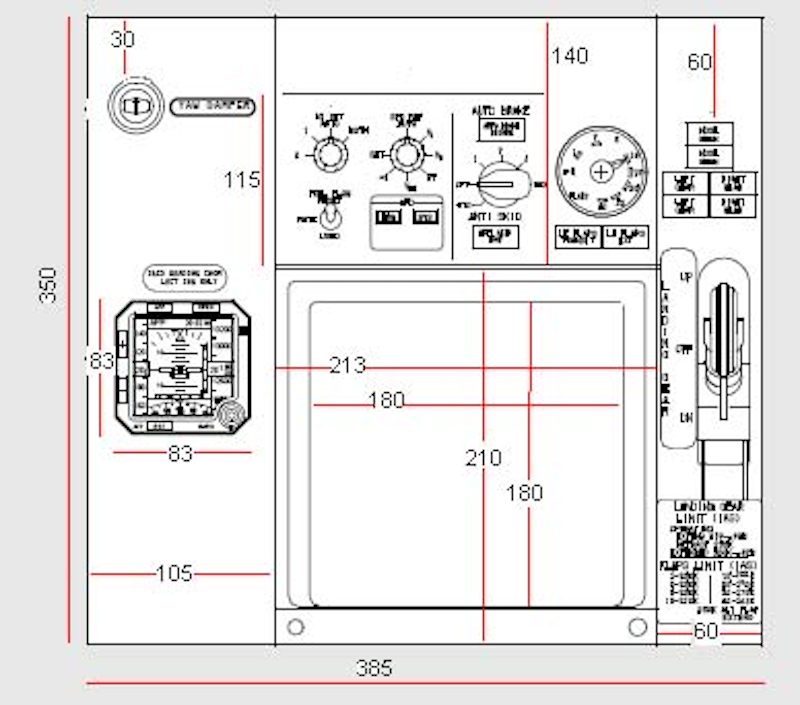

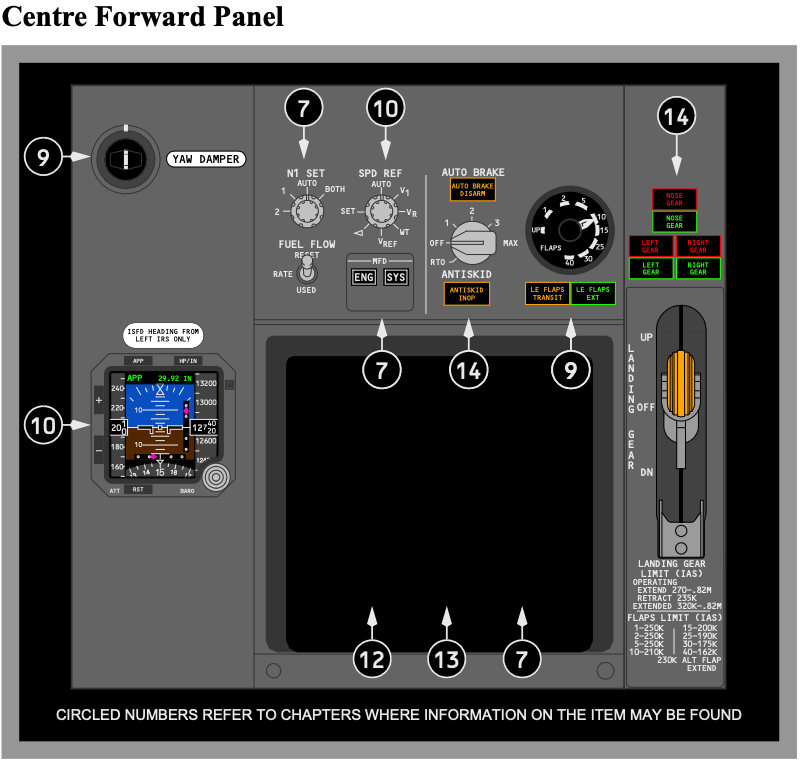

CENTER FORWARD PANEL
• approximate width mm • 385 mm
• approximate height mm • 350 mm
• approximate slope • 15 -18 °
FIRST OFFICERS INSTRUMENT PANEL
RIGHT FORWARD PANEL
LENGTH / WIDTH : 565 mm
HEIGHT : 350 mm + angled light panel
