FLIGHT MANAGEMENT COMPUTER DIMENSIONS &
LOWER DISPLAY UNIT DIMENSIONS

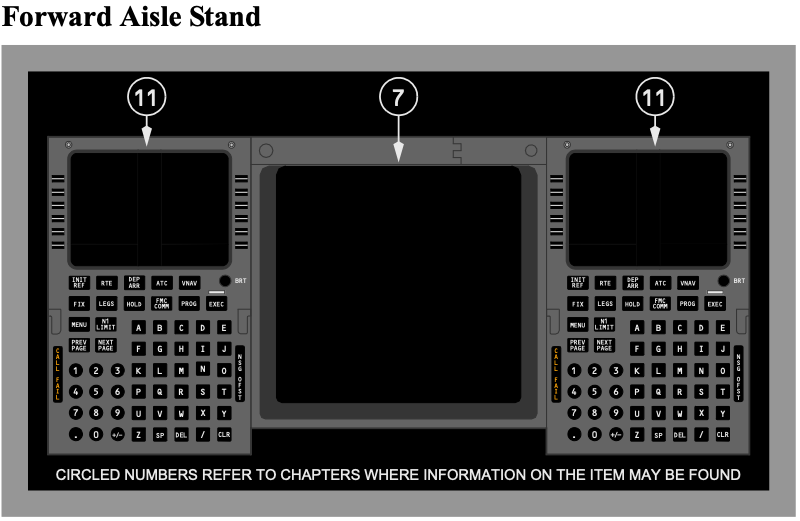

FORWARD AISLE STAND
• approximate length mm  • 230 mm
• approximate width mm  • 515 mm
• approximate height mm  • 510 mm / 390 mm

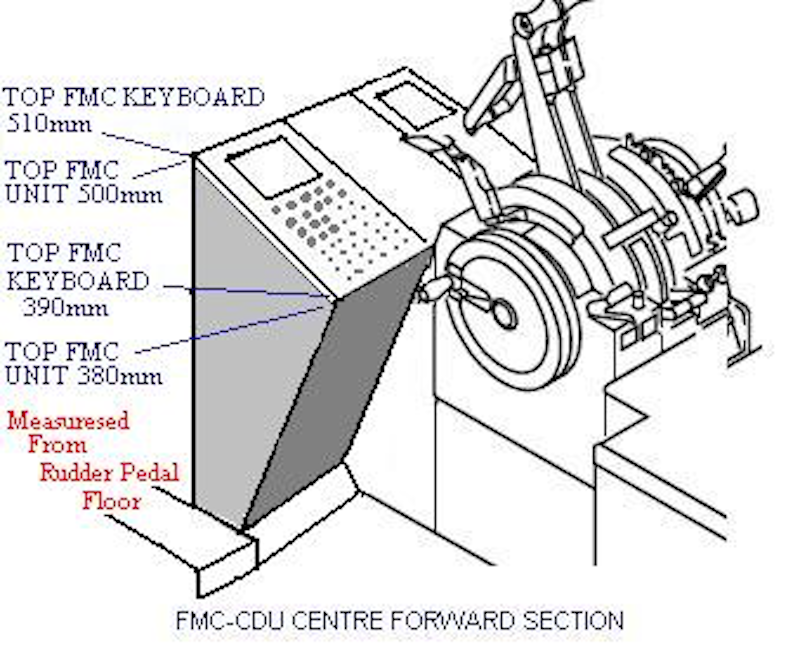

510 mm from (rudder) floor @ top of FMC unit
390 mm from (rudder) floor @ bottom of FMC keyboard
585 mm from (flt deck) floor @ top of FMC unit
465 mm from (flt deck) floor @ bottom of FMC keyboard
Approx 30 ° slope

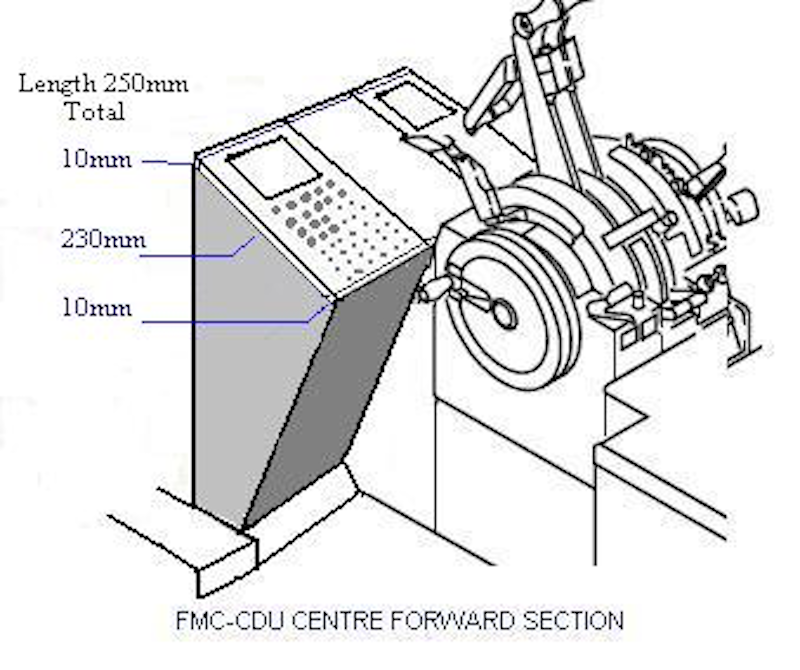

Length of FMC Unit
Keyboard = 230mm + 3 mm space top and 7 mm space bottom = 240 mm Total
Angle or Slope of the Keyboard = 30°

POSITION of FMC & LDU in the FLIGHT DECK
Position of Forward edge FMC Control Display Unit = between 0 & 5 mm aft from Main Instrument Panel
(measuresed from lower edge of MIP)
Position of Aft edge FMC Control Display Unit = 1915 mm from Aft Wall Bulkhead
